High Accuracy HMI Automatic Water Bottle Labeling Machine 0.7kw

Product Categories
Shanghai Yimu Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

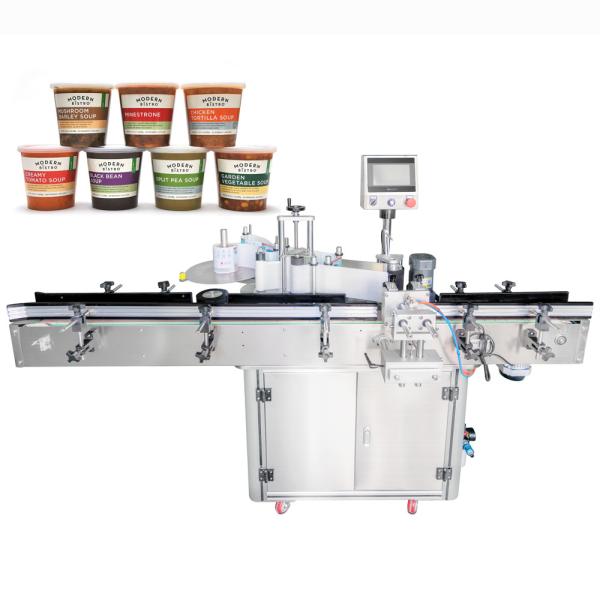

High Accuracy HMI Automatic Water Bottle Labeling Machine 0.7kw

Place of Origin : Shanghai, China

Brand Name : YIMU

Packaging Details : wooden case

Price : $4,600.00/sets 1-4 sets

Model Number : YM515

Certification : SGS, CE

MOQ : 1 SET

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union

Supply Ability : 5set per month

Delivery Time : 15-30 works day

Type : LABELING MACHINE

Applicable Industries : Manufacturing Plant, Food & Beverage Factory

Showroom Location : Canada, United States, Germany, Viet Nam, South Africa, Australia

Condition : New

Application : Food, Beverage, Commodity, Medical, Chemical

Packaging Type : case

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220/380V

Dimension(L*W*H) : 2000(L)*700(W)*1700(H) mm

Weight : 250 KG

Warranty : 2 years

Key Selling Points : High-accuracy

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 5 years

Core Components : PLC, Motor

Labeling speed : 20-50pcs/min

Bottle type : any round or taper

Label width : 5-150mm

Label length : 5-500mm

Labeling accuracy : 1mm

PLC : Mitsubishi(Japan)

Material : SS 304

After-sales Service Provided : Video technical support

Marketing Type : New Product 2021

Product name : Bottle Labeling Machine

Contact Now

PRODUCTS DESCRIPTION

Automatic positioning labeling machines are widely used in many different industries. Here are some common industry applications:

  1. Cosmetics industry: Suitable for labeling bottles, boxes, and tubes of cosmetics.
  2. Food industry: Suitable for labeling cylindrical food bottles, cans, and boxes.
  3. Pharmaceutical industry: Suitable for labeling medicine bottles, boxes, and bags.
  4. Daily chemical industry: Suitable for labeling shampoo bottles, shower gel bottles, hand sanitizer bottles, etc.
  5. Wine and beverage industry: Suitable for labeling cylindrical wine bottles and beverage bottles.
  6. Chemical industry: Suitable for labeling chemical liquid barrels.

Here are some examples of food packaging that can be labeled using the YM515 automatic positioning labeling machine:

  1. Popcorn packaging: cylindrical or conical popcorn packaging.
  2. Potato chip packaging: cylindrical or conical packaging for potato chips.
  3. Nut packaging: cylindrical or conical packaging for nuts such as peanuts, pistachios, almonds, etc.
  4. Candy packaging: cylindrical or conical packaging for candies such as chewing gum, lollipops, etc.

It's important to note that different shapes and sizes of packaging may affect the operation of the labeling machine. Therefore, it's crucial to choose and adjust the labeling machine based on the actual situation.

PRODUCT PARAMENTERS
1
Label width(height)
10-180mm
2
Label length
20-500mm
3
Capacity
0- 60 bottles/min
4
Conveyor speed
0-30m/min
5
Labeling accuracy
±0.5mm
6
Bottle diameter
Below 120mm
7
Power supply
700W, 110V/220V, 50/60Hz, 1 phase (customized)
8
Label reel Inner diameter
76mm or 40mm
9
Label reel outer diameter
Max 380mm
10

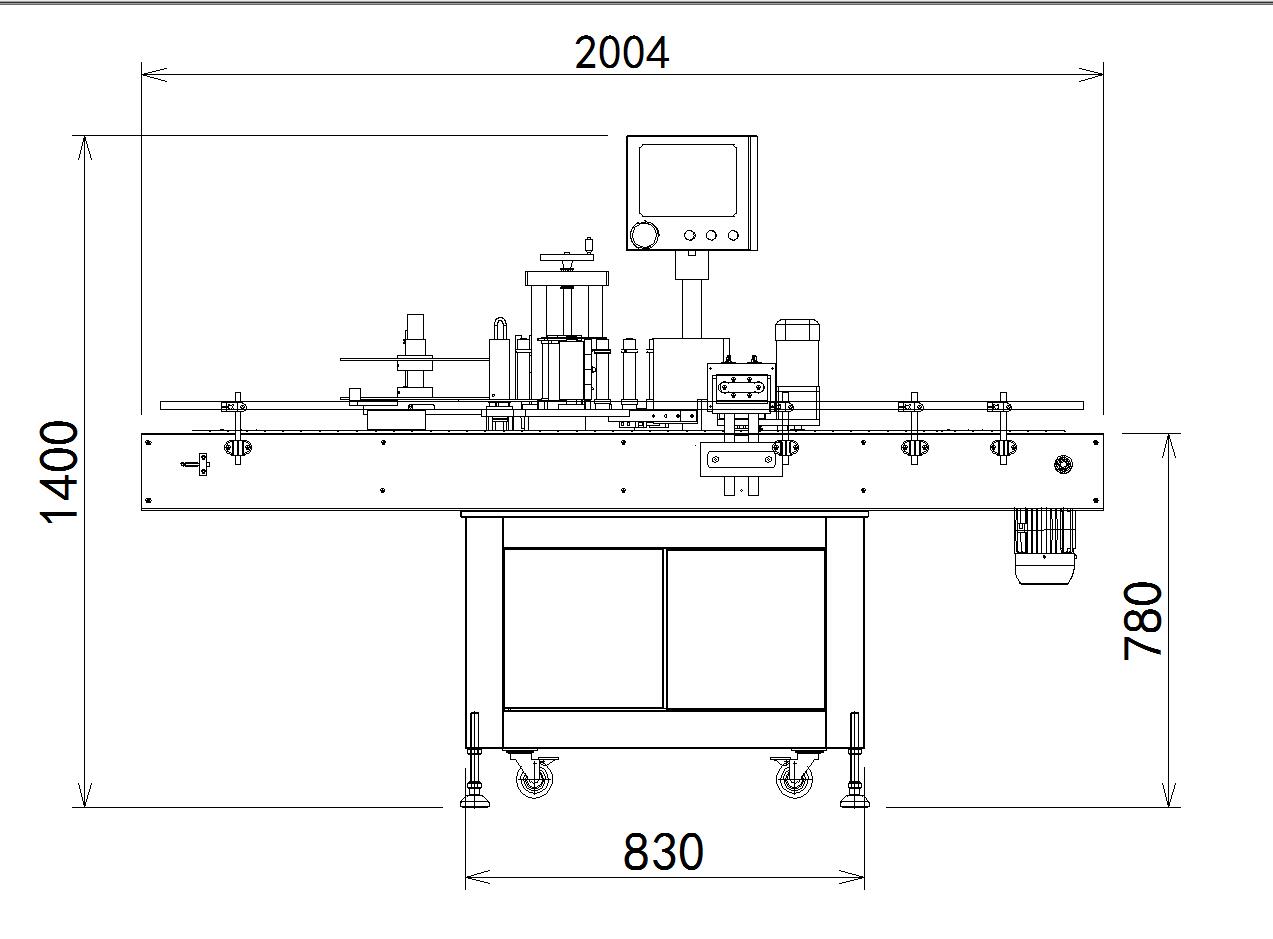

Machine size
L2000 * W800 * H1750 mm
11
Machine net weight
250KG
12
Date printer
Optional
13
Transparent sensor
Optional

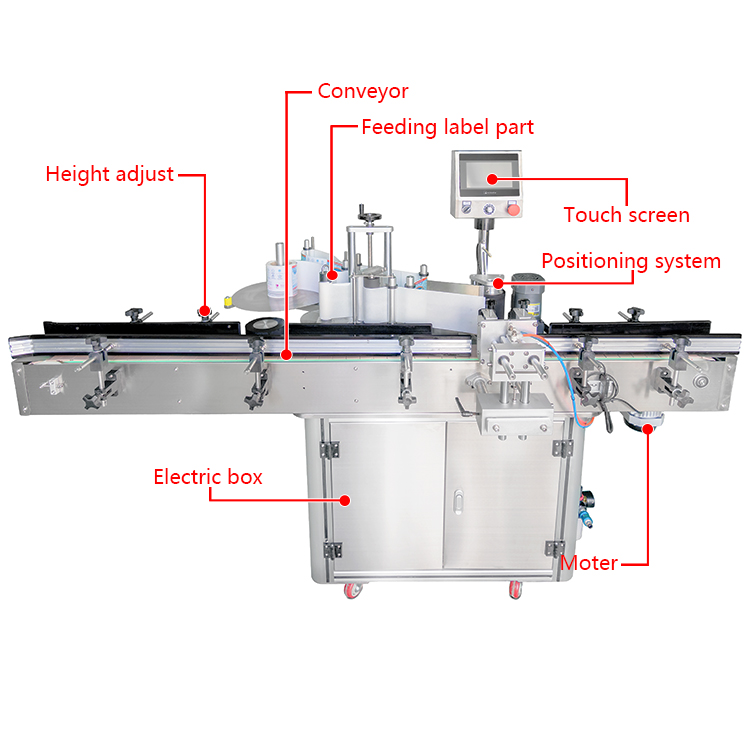

MAIN CONFIGURATION LIST
PLC
SIEMENS / MITSUBISHI
HMI
SIEMENS / WEINVIEW
Label feed motor
RAYNEN servo motor / KINCO stepper motor
Label sensor
SICK / FOTEK
Bottle sensor
SICK / KEYENCE / PANASONIC
Motor
Taiwan Taibang
Frequency changer
Taiwan Delta
APPLICATION
High Accuracy HMI Automatic Water Bottle Labeling Machine 0.7kw

High Accuracy HMI Automatic Water Bottle Labeling Machine 0.7kw
High Accuracy HMI Automatic Water Bottle Labeling Machine 0.7kw

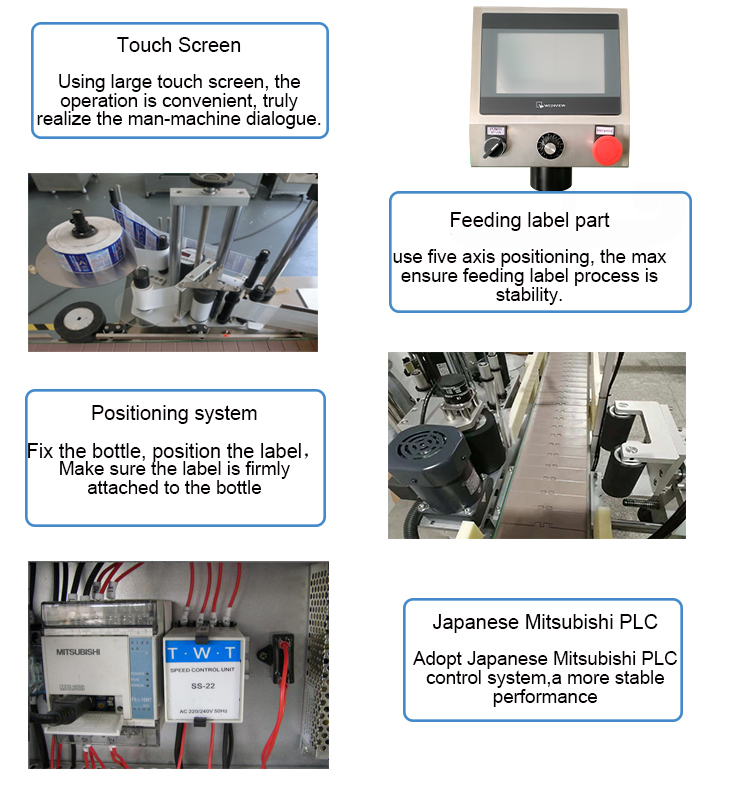

DETAILS IMAGES
High Accuracy HMI Automatic Water Bottle Labeling Machine 0.7kw
CUSTOMER
High Accuracy HMI Automatic Water Bottle Labeling Machine 0.7kw
COMPANY PROFILE
High Accuracy HMI Automatic Water Bottle Labeling Machine 0.7kw
